• Features AP Racing CP9660 Radi-CAL calipers
• 372x34mm, 72 vane AP Racing disc
• Weighs roughly the same as OEM brakes, despite being considerably larger
• Every component designed to resist the heat of extended track sessions
• Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system
• Designed to work with OEM rear brakes or our Essex/AP Racing rear BBK
• Include Caliper Tension Kits
• Optional Ferodo Racing Pads DS2500

Description

Advantages Over OEM Brake System:
• Weighs roughly the same as OEM brakes, despite being considerably larger
• AP Racing Radi-CAL calipers are the stiffest, lightest, and most technologically advanced calipers available at any price
• CP9660 calipers use a 18mm thick, commonly available brake pad shape
• Ventilated, domed back, stainless steel pistons keep heat out of the brake fluid and provide an ultra-firm pedal
• Mitigation of pad knockback via anti-knockback springs behind the caliper pistons
• Anodized caliper finish that is resistant to wear and deterioration at elevated temperatures
• Stainless steel caliper hardware for a long caliper service life under frequent pad change conditions
• High temperature, low drag seals that will hold up to track temps= less rebuilding and longer service life
• No dust boots to burn up
• Simple pad change with two bolts or quick-change spring clip, no caliper removal required
• Lifetime professional caliper rebuilding support by Essex (at a fee)- pull off your calipers, send them to us, we clean, inspect, and rebuild them
• Available disc burnishing service ensures that your kit arrives ready to be installed and driven hard immediately
• Championship winning, 72 vane, fully floating, AP Racing J Hook racing discs with 12 attachment points to hat
• Anti-knockback/anti-rattle disc attachment hardware
• Replacement iron disc rings available at an extremely competitive replacement price
• Disc metallurgy specifically designed to handle the temps typically seen on track offer a long service life
• Highest quality, Spiegler stainless steel brake line with clear sheath that reduces compliance over OEM rubber design

Specifications

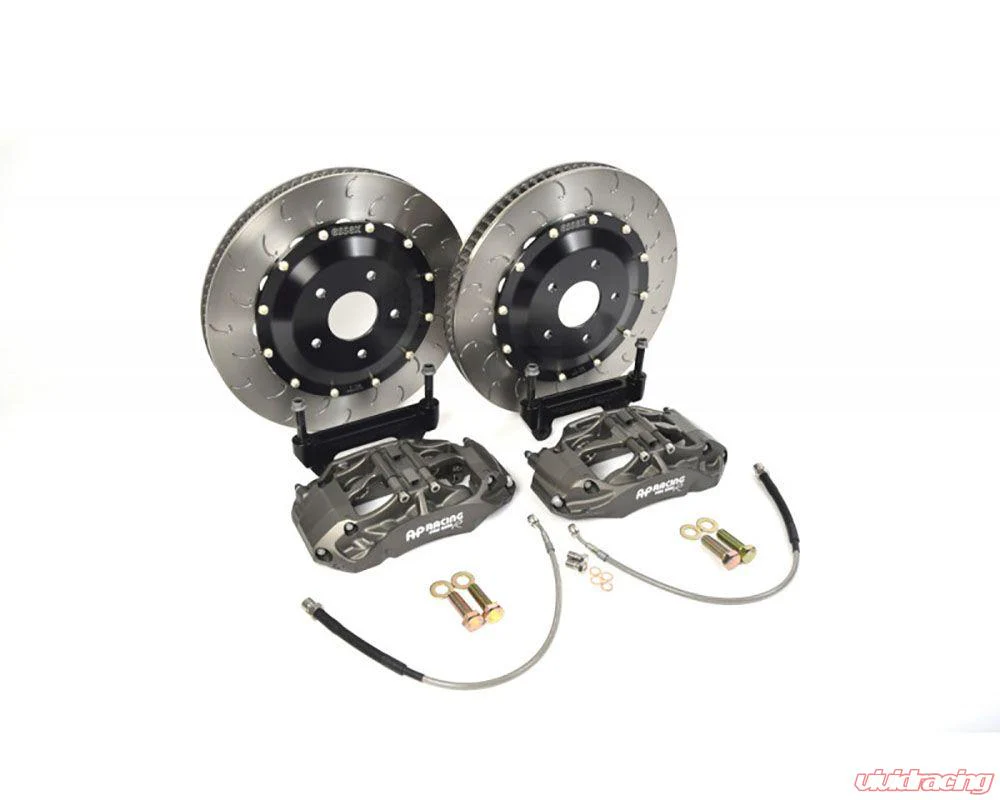

Package Includes:

• One pair AP Racing CP9660 Radi-CAL Pro5000R six piston calipers
• One pair 372x34mm AP Racing CP7177, 72 vane, J Hook racing discs, with fully floating 6061 hard anodized aluminum hats, and attachment hardware
• One pair caliper mounting brackets and hardware
• One pair Spiegler Stainless Steel Brake Lines with abrasion resistant coating
• Detailed installation instructions
Brake pads are Optional. Racing brake pads are a highly personal choice. Many manufacturers include a set of inexpensive, low quality pads with their brake kits.
• Pad Tension Clips (frequently referred to as anti-rattle clips) are included manufacturer builds their pads with specifications that are slightly different. As such, pads from different manufacturers, or even from different batches, won't always fit in the calipers in exactly the same manner. Some pads are a snug fit, while others may rattle around and produce noise. The Essex Designed Pad Tension Kit is designed to dramatically reduce pad movement inside the caliper, along with just about all resulting noise.

Features:
• Features AP Racing CP9660 Radi-CAL calipers
• 372x34mm, 72 vane AP Racing disc
• Weighs roughly the same as OEM brakes, despite being considerably larger
• Every component designed to resist the heat of extended track sessions
• Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system
• Designed to work with OEM rear brakes or our Essex/AP Racing rear BBK

Fitments:

• Tesla Model 3 2017+

Notes:

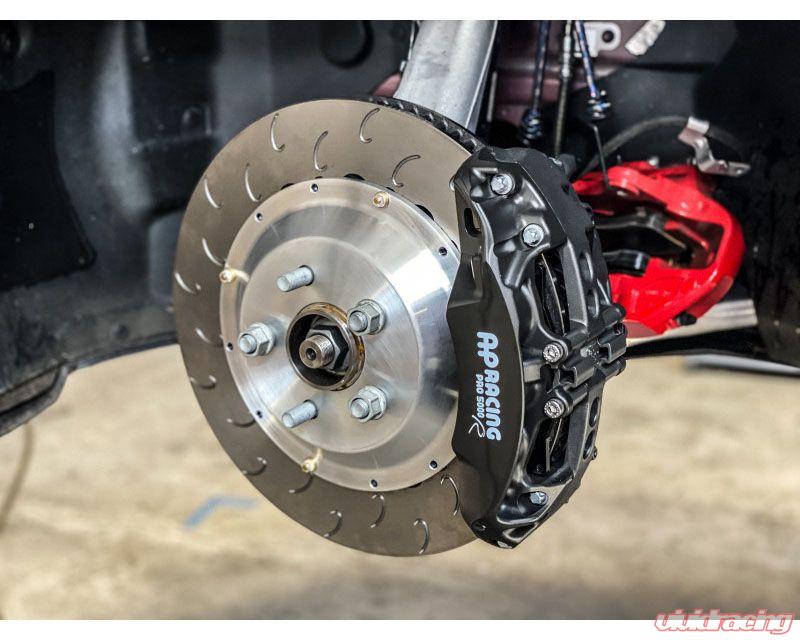

• OEM 20" Wheels Show In picture
18x9.5" ET35 APEX EC-7 Tesla Model 3 is a Compatible Wheel

AP Racing

AP Racing Essex Designed Front 9660/372mm Radi-Cal Competition Brake Kit Tesla Model 3 2017+
