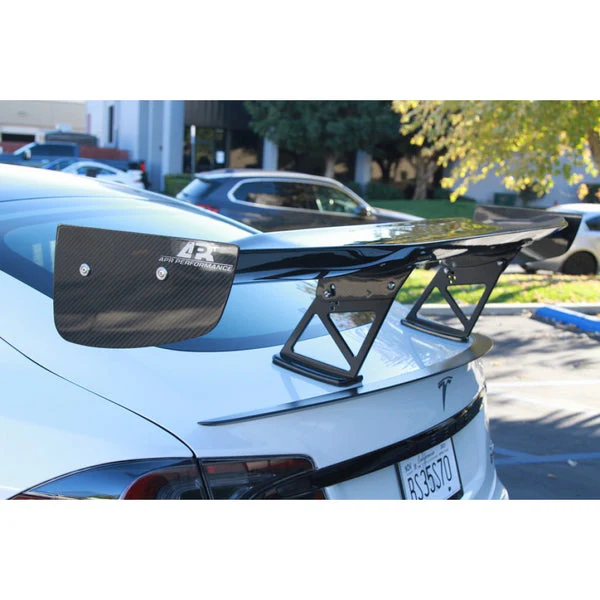

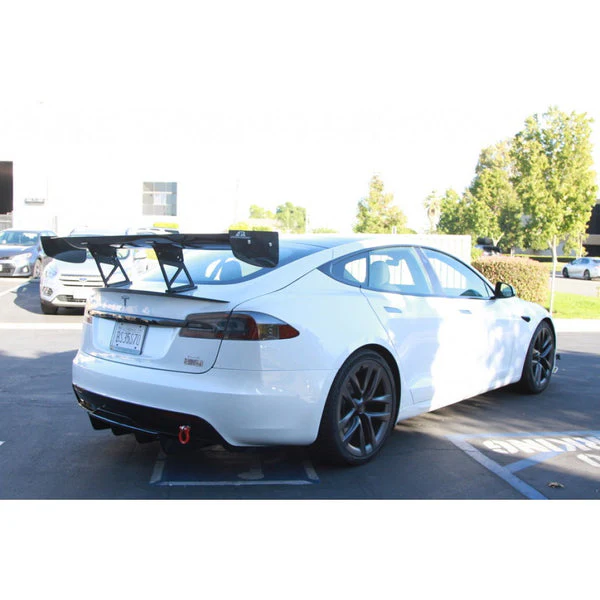

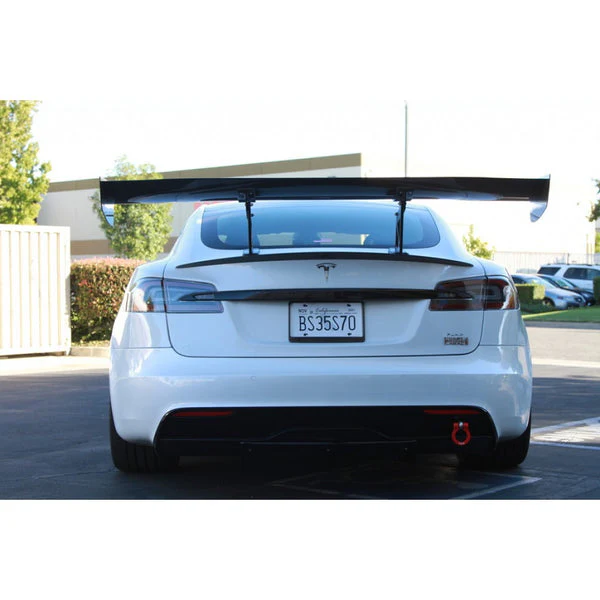

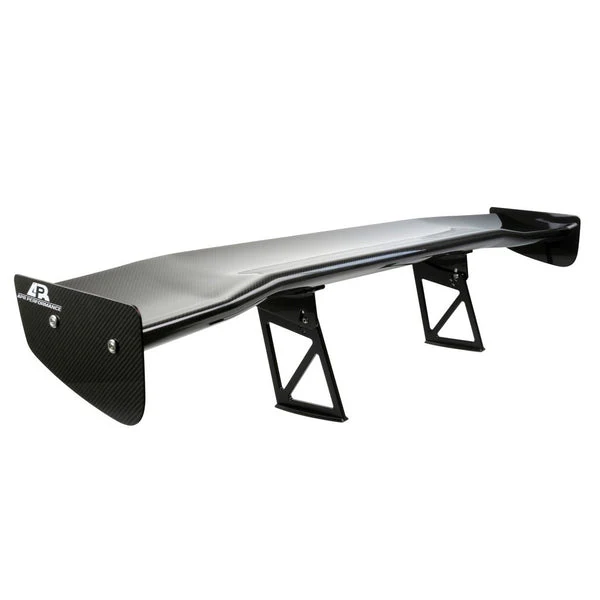

APR Performance GTC-500 Carbon Fiber Wing for Tesla Model S Plaid 2021+
Benefits
Specifications
| Pattern | 2x2 twill weave |
| Material | Pre-preg carbon fiber, 3K |
| Coating | UV-stable clear coat |
| Wing Span | 70" w/ variable Angle-of-Attack (AOA) (center section vs outer section angle difference: 10 degrees) |
| Hardware | Stainless-steel machine screws, washers, and nuts |
| Mounting | 6061 billet aluminum brackets/pedestals with application-specific bottom mounting bases |
Features
- The APR Performance GTC-500 Adjustable Wing features a 3D airfoil shape that is designed to produce balanced downforce across its span on widebody sports and touring car applications.
- Each GTC Series airfoil is composed of lightweight and durable pre-preg carbon fiber composite materials for superior strength and low weight.
- Aerodynamically-tuned side plates (aka end plates), included with every GTC Series Adjustable Wing, are critical components that help to ensure consistent airflow across the full span of the airfoil.
- Supporting the airfoils are 10mm "aircraft grade" 6061 billet aluminum pedestals that come in a flat black powder coat finish.
Computational Fluid Dynamics (CFD)
Modeled in 3D and validated using Computational Fluid Dynamics (CFD), the APR Performance GTC-500 Adjustable Wing is designed to adapt to a variety of widebody sports and touring car applications.
Gurney Flaps
Gurney flaps are available for all APR Performance GTC Series (200/300/500) wings. These are super lightweight, made using pre-preg carbon fiber processes, and conform perfectly to the contours of the GTC series 3D airfoils. They are easily attached using the included double-sided tape.
Wing Dimensions
Measurements for the GTC-500 Adjustable Wing are shown in the table below. Pedestal-to-pedestal distances are indicated for standard applications. Custom pedestal-to-pedestal distances can be accommodated for custom applications.
