• Reliability, quality, safety from the world's largest auto supplier
• Charge rates up to 6 times faster than a level 1 charging cord via a 50-amp service
• Features a J1772 connector as standard
• Made in the USA - 3 year warranty

Description

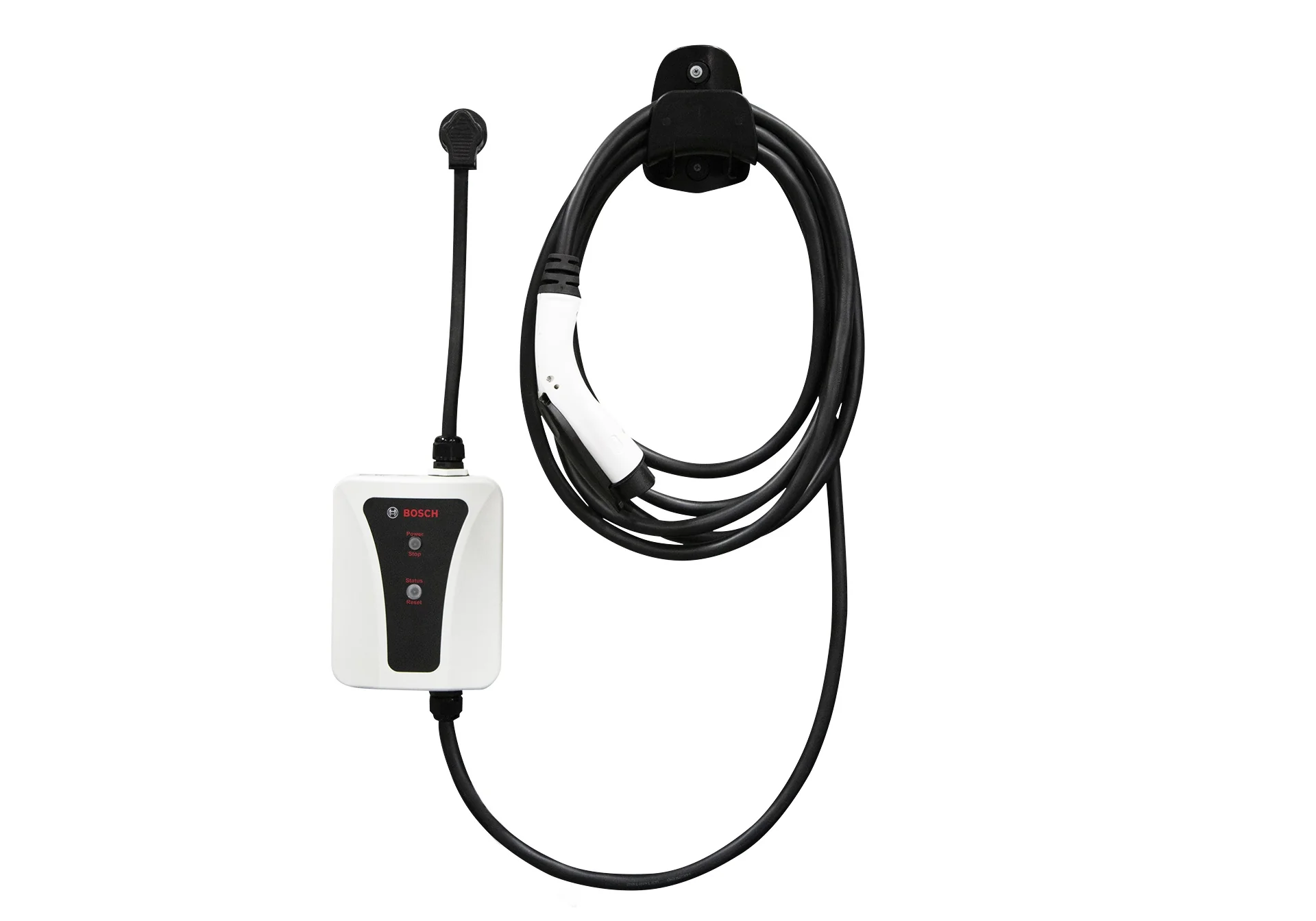

Bosch, the world's largest automotive supplier, offers a level 2 EVSE that reflects its values: their charger is straightforward, reliable, and built to last, with charging speeds up to 6 times faster than a standard level 1 charger.

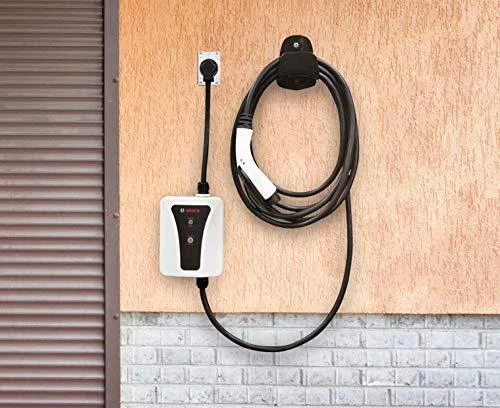

Bosch's EV400 Level 2 EV Charging Station installs simply with 2 wall screws, and plugs in directly to a NEMA 6-50 wall receptacle (50-amp service), although instructions on foregoing the plug and simply hard-wiring are available in the "Installation" tab above. Weather resistant and suitable for placement indoors or outdoors, the EV400 features an industry maximum 25-foot cord length for ease of vehicle positioning. A J1772 connector is standard.

Details:

• Adjustable output from 12A –32A (7.6kW max)
• Plugin design
• Sleek, compact, and moveable design
• Simple mounting requires no brackets
• Multi-function LEDs indicate charging and power status, stop, and reset functions
• The NEMA 3R enclosure allows for indoor and outdoor installations
• 3-year product warranty

• Made in the USA

Specification

Amperage:	12-32 amps
Voltage:	175 VAC - 264VAC
Cable Length:	25 ft
Weight:	12 lbs
Dimensions:	9" L x 7.3" W x 2.8" D
Input/Output Power:	7.6 kW
Enclosure:	NEMA Type 3R; indoor/outdoor
Warranty:	3 years

Installation

> Download Install Instructions
